Using Ggplot2 to plot last.fm top 100 albums

Posted by Kristoffer Magnusson on 2012-03-22 19:25:00+01:00 in R

Tagged as Ggplot2 last.fm R statistics

  • Share on:

I found out that last.fm had made data files available for their Best of 2011 artist list, and I thought it’d be a great opportunity to learn some more about data management in R and Ggplot2. I began by downloading and importing the tab separated data file from last.fm (TSV).

1
2
# read data
lastfm <- read.delim("~/Downloads/bestof_2011_tsv/bestof_2011_releases.tsv")

Then I did some data cleanup, because one row just contained junk and some columns were unnecessary. I also removed all entries after row 100.

1
2
3
4
5
6
# remove row 541 'cause it's just junk
lastfm <- lastfm[-541,]
# remove unnecessary columns
lastfm <- lastfm[-c(3, 5)]
# remove all rows after 100
lastfm <- lastfm[-c(101:nrow(lastfm)) , ]

I did a search for missing values, but none were found.

1
2
which(lastfm == "NULL", arr.ind = TRUE)
which(is.na(lastfm), arr.ind = TRUE)

The XML-file contained information about artists location. So I loaded it and cleaned it up a bit. The location column was a bit messy so I edited manually in statas data editor, I figured it was the easiest way. I then read the edited data file back into R and combined that data.frame with the rest of the data from the TSV-file.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
library(XML)
last.xml <- xmlToDataFrame("~/Downloads/bestof_2011_xml/bestof_2011_releases.xml")
last.xml <- last.xml[-c(101:nrow(last.xml)) , ]
last.xml <- last.xml[-c(1,4,5,6,7,8,9)]
write.dta(last.xml, "stata", version = 7L)

# read stata-file
library(foreign)
last.xml <- read.dta(file="/Users/Kris/stata.dta")
# combine data.frames
lastfm <- cbind(lastfm, location = last.xml$location)

I tried plotting this data.frame with ggplot but the location variable contained 17 countries, which made a messy plot. Therefore I choose to group some countries under the label "other".

1
2
3
4
5
6
7
8
9
lastfm$location <- as.character(lastfm$location)
lastfm$location[lastfm$location %in% c("Denmark", "Sweden")] <- "Sweden/Denmark"
lastfm$location[lastfm$location %in% c("Germany",
                                       "France","Paris","Australia",
                                       "New Zealand",
                                       "Iceland","Brazil", "Scotland",
                                       "Democratic Republic of the Congo",
                                       "Romania","Belgium",
                                       "Netherlands")] <- "Other"

I still wasn't satisfied with the plot, because it wasn't sorted after album plays. I tried quite a lot of different methods of sorting the data.frame before figuring out how to do it successfully with reorder().

1
lastfm$artist.name <- reorder(lastfm$artist.name, rowSums(lastfm[4]))

I wanted my plot to have readable decimal notation so I created my own x-breaks.

1
2
3
4
5
library(scales)
x.breaks <- cbreaks(
  c(0, max(lastfm$album.plays)), #range: 0 to album.plays max
  pretty_breaks(10), # 10 ticks
  labels = comma_format()) # create labels with commas, ie 10,000.

I also used my own custom colors for the plots legend, which I saved in a list before initiating ggplot2.

1
2
3
4
5
6
7
location.color <- c("Canada" = "#7b8dbf",
                    "Other" = "#f97850",
                    "Sweden/Denmark" = "#df72b6",
                    "UK" = "#57b894",
                    "USA" = "#4a4a4a"
                    )
)

Then, at last, I drew the plot with ggplot2.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
library(ggplot2)
ggplot(lastfm, aes(artist.name,album.plays, fill=location)) +
  geom_bar(stat="identity") +
  coord_flip() + # flip x and y
  xlab("Album Artist") +
  ylab("Album plays") +
  # Use the labels and breaks I defined earlier
  scale_y_continuous(breaks = x.breaks$breaks, labels = x.breaks$labels) +
  # Add a plot title
  opts(title = "Last.fm top 100 albums 2011",
       # Move the legend inside the plot to save space.
       legend.position=c(.85, .5),
       # Change it's background to white.
       legend.background=theme_rect(fill="#ffffff")) +
  # Use my custom color scale which I defined earlier.
  scale_fill_manual("Artist homeland", values = location.color)

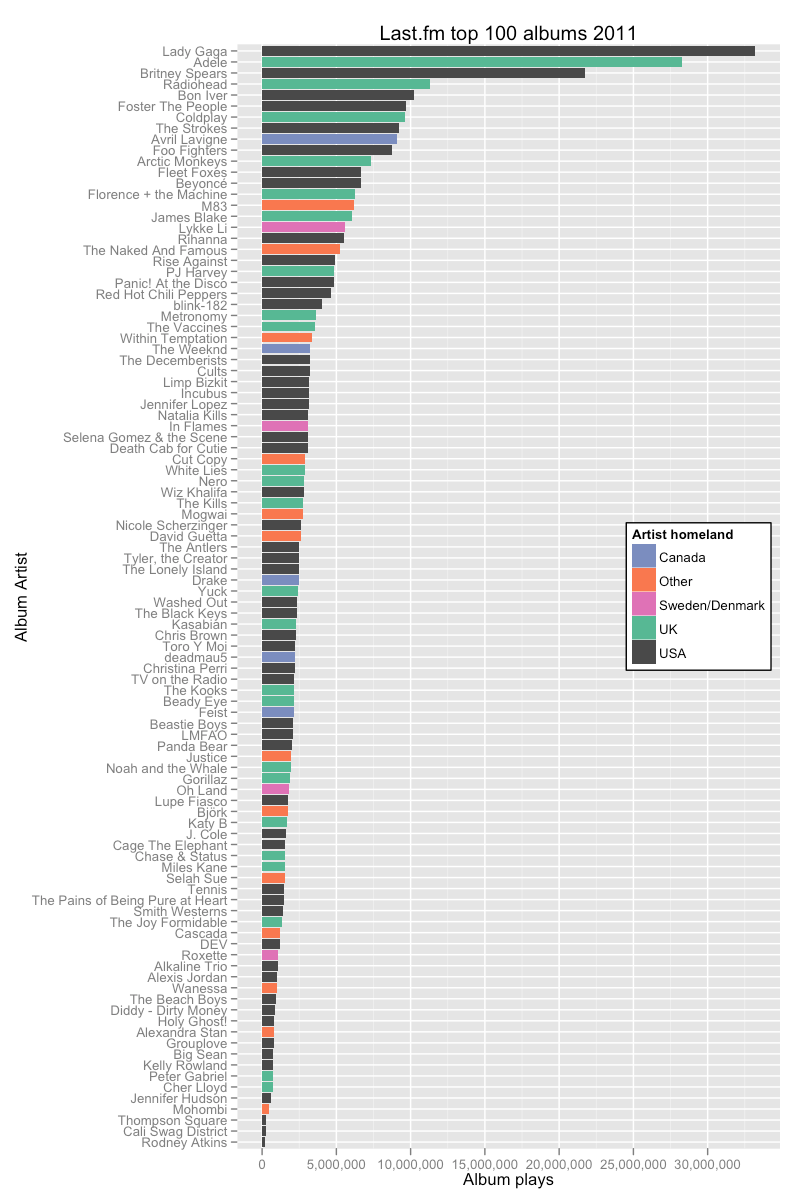

Last.fm plot 2011. By Kristoffer Magnusson

We can see that the plot is dominated by USA and UK and that Adele and Lady Gaga got exponentially more album plays than the rest. To give a summary of $location I used summary().

1
summary(as.factor(lastfm$location))

Which gave the following:

1
2
Canada          Other     Sweden/Denmark      UK            USA
  5             13              4             24             54
